5/16 Hex, Male-Female Standoffs
The 5/16" Hex, Male-Female Standoffs have an internal thread on one end and an external thread on the other. It is hexagon in body shape which can be used to keep two parts separated at a certain distance from each other. They are used in electronic circuit boards, connectors, televisions, monitors, electronic boxes and other type uses.

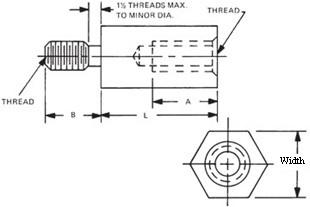

See below for the “L” size codes. When requesting a quote please choose the length code below, the desired thread size.
For non-standard parts contact our Sales team.
| Thread Length Code | Material | Code | |||
| Thread | A | B | Code | Aluminum | A |
| 4-40 | 1/4 | 3/16 | 440 | Brass | B |
| 6-32 | 3/8 | 1/4 | 632 | Stainless Steel | SS |
| 8-32 | 7/16 | 3/8 | 832 | Steel | S |
| 10-32 | 1/2 | 3/8 | 1032 | Nylon | N |
See below for the “L” size codes. When requesting a quote please choose the length code below, the desired thread size.
For non-standard parts contact our Sales team.
